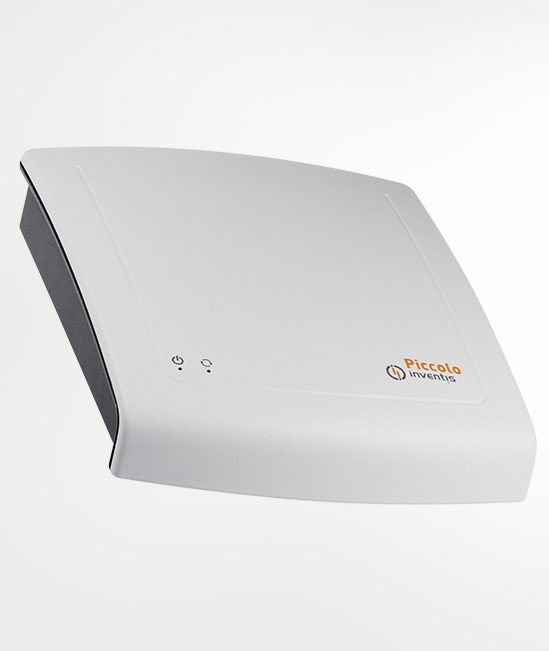

Piccolo PORTABLE AUDIOMETER

Description

Piccolo is a portable diagnostic audiometer, offering air, bone and speech audiometry functions. Piccolo can be controlled either from a computer running Windows or, for the first time ever, from an iPad® over a Bluetooth wireless connection.
A lightweight, compact design, powerful, user-friendly software, and Noah connectivity combine to make Piccolo the ideal choice for professionals on the move.

THE MODELS
To best fit different needs, Piccolo is available in three versions:
• Basic: pure tone audiometry – only AC output
• Plus: pure tone audiometry – AC and BC outputs
• Speech: pure tone and speech audiometry – AC and BC outputs. Only the Speech model includes a 2 channels Master Hearing Aid. In addition, QuickSIN is available upon request.

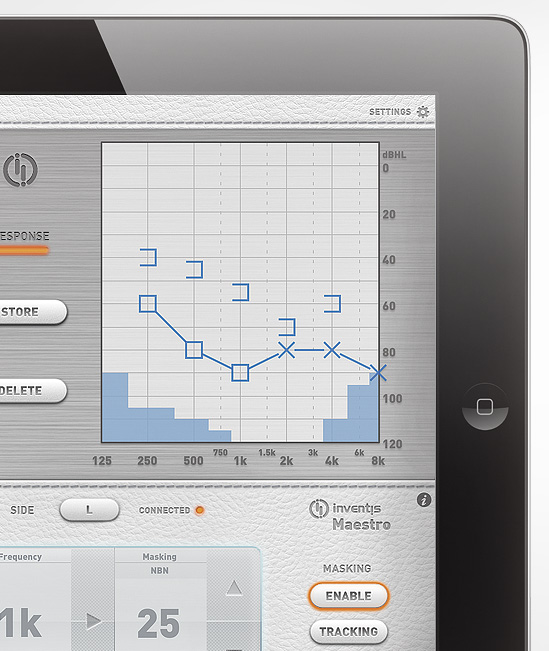

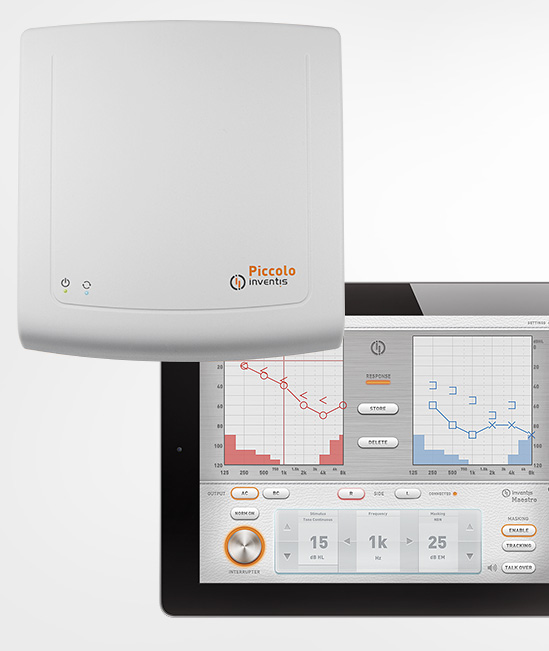

IPAD® CONTROL
Whether you are hooked on iPads or just looking for a superbly portable solution, you can download the Inventis Maestro app from Apple®’s App Store®. The Aero option lets you control Piccolo directly from your iPad® over a Bluetooth connection (iPad® 3 or newer required). The Maestro app features a complete patient database, allowing you to print professional reports and export data to Maestro software.

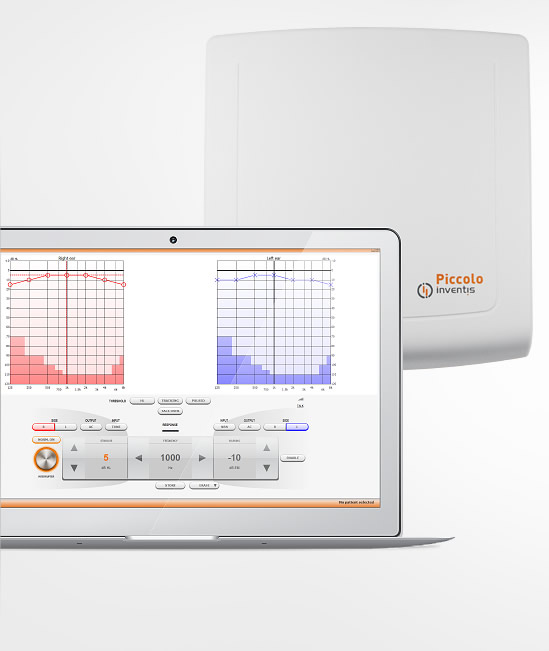

COMPUTER CONTROL
Connect Piccolo to the USB port of your computer and you are ready to go. There is no need to install a driver or even plug in a power supply. You can control Piccolo through the Maestro’s amazingly user-friendly interface, available also for Noah software.

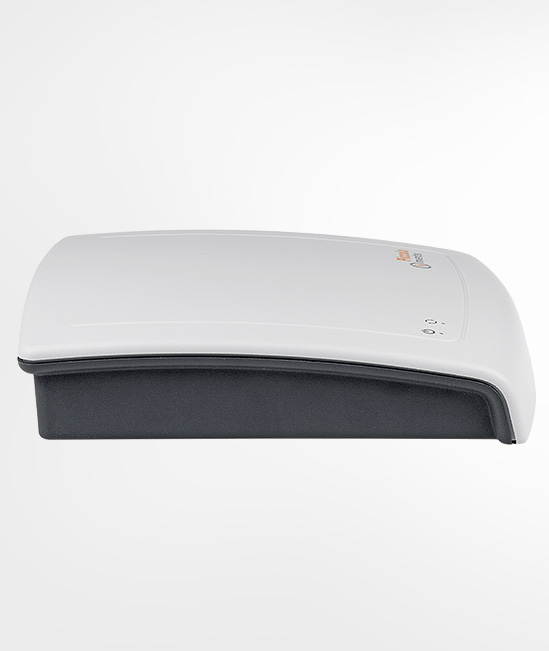

INCREDIBLY PORTABLE
Piccolo is extremely light (less than 300 grams), boasts a very small footp

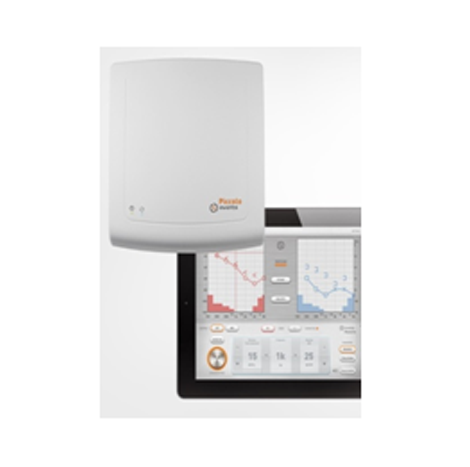

PC-iPad controlled Portable Audiometer
BASIC
MODEL
Piccolo Basic/ Piccolo Basic Aero / Piccolo Plus / Piccolo Plus Aero / Piccolo Speech / Piccolo Speech Aero

CONNECTION
– Piccolo : connect to PC by USB (driverless)
– Piccolo Aero : connect to iPad by Bluetooth 4 connection

SPEECH INPUT
EXT1, EXT2, USB, MIC

COMPATIBLE SOFTWARE
Inventis Maestro (stand-alone or NOAH module)

Technical Data:

• INTENSITY AC: -10 TO 120 DB HL.
• BC: -10 TO 80 DB HL
• FREQUENCY RANGE 125-8000 HZ
• INPUT BASIC, PLUS: TONE, WARBLE TONE
• SPEECH: TONE, WARBLE TONE, EXT 1-2, MIC.
• MASKING BASIC, PLUS: NBN
• SPEECH: NBN, WN, SN
• OUTPUT BASIC: AC L+R
• PLUS, SPEECH: AC L+R, BC
• TALK OVER EXTERNAL MICROPHONE
• CONNECTION TO PC USB
• COMPATIBLE SW MAESTRO OR NOAH WITH MAESTRO MODULE (BOTH INCLUDED)
• LANGUAGE MULTILINGUAL INTERFACE
• CONN. TO IPAD® BLUETOOTH 4 (REQUIRES AERO OPTION)
• CONTROLLING APP MAESTRO
• DIMENSIONS 16 X 16 X 3 CM / 6.3 X 6.3 X 1.2 IN. (LXWXH)
• WEIGHT 300 G / 10.6 OZ.
• STANDARDS BASIC: EN 60645 -1 / ANSI S3.6, TYPE 4
• PLUS, SPEECH: EN 60645 -1 / ANSI S3.6, TYPE 3
• SAFETY EN 60601-1, CLASS 1
• EMC EN 60601-1-2
• CLASSIFICATION CLASS IIA (MDD 93/42)
