Piano Plus VRA

Description

Piano Plus VRA is a fully featured, two- independent channels clinical audiometer, which can become the heart of a professional VRA system using as reinforces either traditional cabinet toys or videos and images on one or more displays.

THE AUDIOMETER
Piano is the top-level audiometer in our portfolio. Besides the pediatric audiometry, Piano Plus VRA features a complete test battery, including the High Frequency audiometry. You can find a detailed description of the Piano audiometer in the dedicated page.

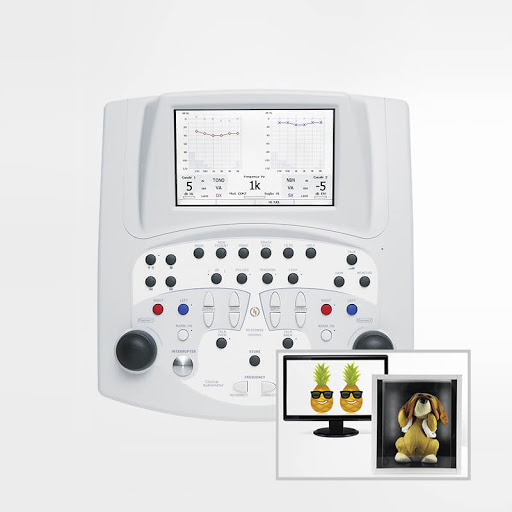

TRADITIONAL VRA…
You can turn Piano Plus VRA into a traditional VRA system by adding up to three toy cabinets, connected directly to the audiometer. Toy cabinets are powered and controlled directly from Piano.

…VIDEO VRA…
Piano Plus VRA lets you build a video- VRA system with unlimited possibilities for customizing the images and videos used as reinforces, and enables you to create an advanced VRA system that can capture a baby’s attention for a longer time. All you need to do is connect Piano Plus VRA to a standard computer and install the Maestro VRA module. Up to three displays can be controlled to provide reinforces.

…OR BOTH TOGETHER!
With Piano Plus VRA you can even combine traditional toy cabinets with video reinforces, deciding which conditioning method to use on a case-by-case basis.

Technical Data:

• CHANNEL TWO SEPARATE AND IDENTICAL CHANNEL
• INTENSITY AC: -10 TO 120 DB HL.
• BC: -10 TO 80 DB HL
• AC HF: -20 TO 90 DB HL
• FREQUENCY RANGE 125-8000 HZ, 8-20 KHZ
• FREQUENCY RESOLUTION 1/24 OCTAVE (MULTI-FREQUENCY TEST, ONLY PLUS MODEL)
• INPUT TONE, WARBLE TONE, EXTERNAL SOURCE 1 AND 2, MIC., INTERNAL FLASH MEMORY
• MASKING NBN, WN, SN
• OUTPUT AC L+R, INSERT L+R, BC, FF L+R, INSERT MASKING, HF L+R
• TALK OVER BUILT-IN OR EXTERNAL MICROPHONE
• MONITOR BUILT-INT SPEAKER OR HEADPHONE
• DISPLAY COLOR DISPLAY WITH TOUCH SCREEN, 7″, 800 X 480 PIXELS
• SPECIAL TESTS AUTOTHRESHOLD, ABLB, TONE DECAY, SISI, DLI, MLB, TEN TEST, STENGER, MASTER HEARING AID, QUICKSIN (OPT.), MULTI FREQUENCY, HIGH FREQUENCY, BEKESY, MLD, PEDIATRIC AUDIOMETRY (VRA AND CPA TESTS)
• INTERNAL FLASH MEMORY 2 GB
• PRINTER OPTIONAL INTEGRATED THERMAL PRINTER
• LANGUAGE MULTILINGUAL INTERFACE
• PC INTERFACE BIDIRECTIONAL USB
• MODES OF OPERATION STAND-ALONE AND HYBRID
• COMPATIBLE SW INVENTIS MAESTRO OR NOAH WITH DEDICATED MODULE
• DIMENSIONS 32 X 32 X 15 CM / 12.6 X 12.6 X 5.9 INCHES (LXWXH)
• WEIGHT 2 KG / 4.4 LBS
• STANDARDS AUDIOMETER: EN 60645 -1 / ANSI S3.6, TYPE 1
• SPEECH: EN 60645-2 / ANSI S3.6 TYPE A-E
• HF: EN 60645-4 /ANSI S3.6
• SAFETY: EN 60601-1
• EMC: EN 60601-1-2
• CLASSIFICATION CLASS IIA (MDD 93/42)

CHANNEL

Two separate and independent channels

VRA CONFIGURATION OPTION

-Traditional VRA system: by adding up to three toy cabinets

-Video VRA system: with unlimited possibilities for customizing the images and videos used as reinforces

-Combo system: traditional toy cabinets with video reinforces

SPEECH INPUT

EXT1, EXT2, MIC, Internal flash memory(2GB)

DISPLAY

Color graphical with touch control

PRINTER

Build-in thermal printer(optional)

OPERATION MODE

Stand-alone or PC-controlled

COMPATIBLE SOFTWARE

Inventis Maestro or NOAH database
